Entrex 480 Restoration

Dominique Carlier, near Brussels in Belgium, is doing a fantast job restoring a full Nixdorf 620 / Entrex 480 system.

Here are the specifications of his system:

Computer : D-116, clone of a DG Nova 1230 with 17 slots, also known as "Entrex 480" and "Nixdorf 620"
Core memory : 64 kW
Terminal : ENTREX DATA/SCOPE
Disk Cartridge : Diablo Model 40
Mag-tape : Pertec 8840A (800 bpi)
Line drum printer : Data Products model 2230

As the machine was distributed by Nixdorf, the identification of the tape and disk controllers is a bit difficult.

He is chronicling his progress on the ClassicCMP email list, and we are honored to feature the details of his system and restoration here:

It is a "Nixdor 600 series" (Apparently a Nixdorf 620/35), upgraded
several times until 1980, the CPU board is dated from this year. So I do
not know exactly what machine it is today the equivalent.

Anyway, the Nixdorf 620 is actually built by "Digital Computer Controls"
and after some researches it seems that it is a "DCC-116 E", the 17 slot
version of the "DCC-116" which Is a clone of the "Data General Nova 2/10".

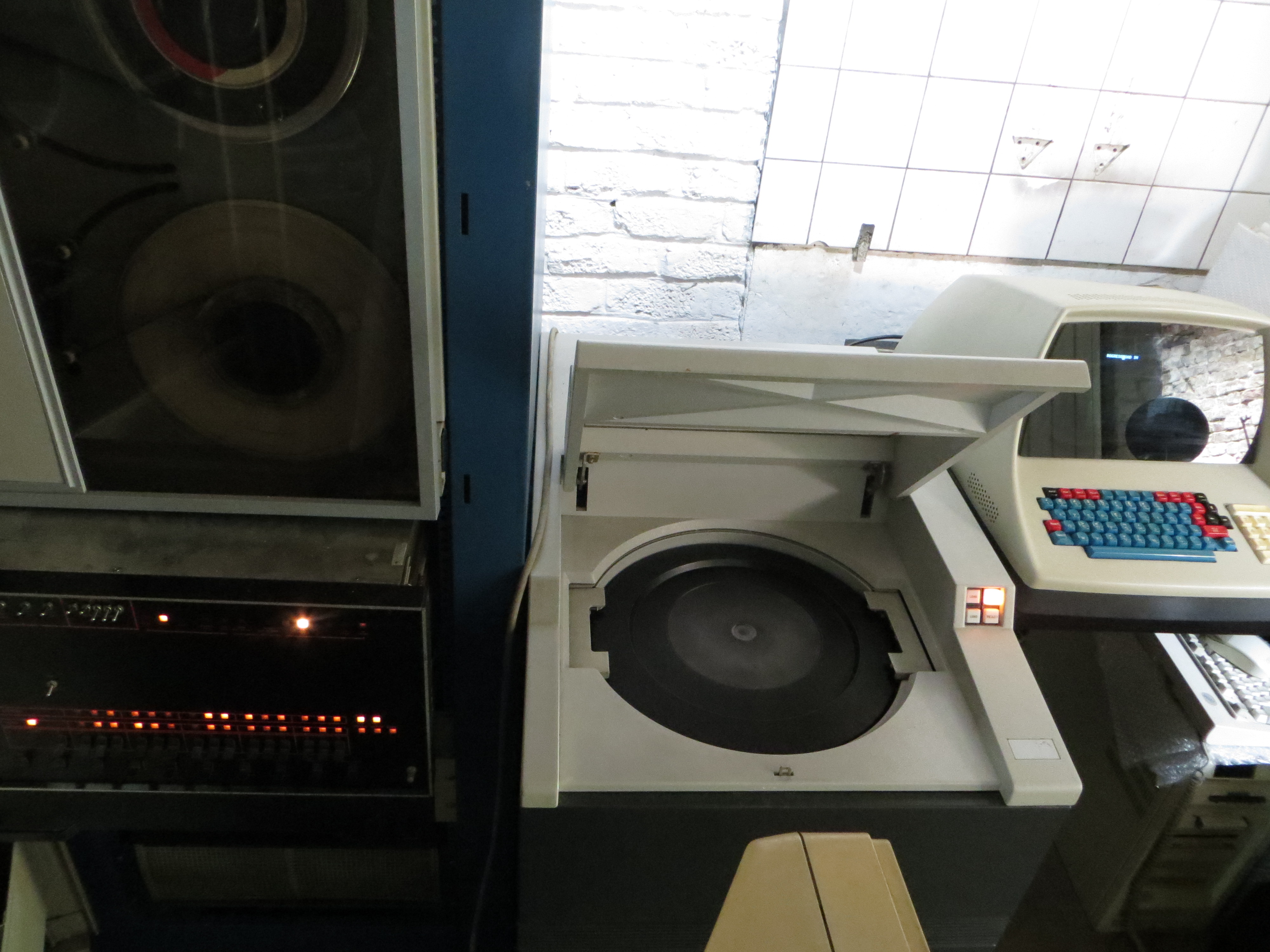

The machine has five Key-stations (ENTREX DATA/SCOPE), a Mag-tape Pertec
8840A - A Disk Cartridge Diablo Model 40 and a big line drum printer
(Data Products model 2230), strange machine, there is a tape reader
inside the printer.

Here is the list of the boards I have with the references written on
them and their position in the machine:

*17   HEX 0  -  15       ENTREX INC 62 00 01842 002 REV A*
*16   HEX 16 30 31       ENTREX INC 62 00 01842 002 REV A**
15    OPTION 2           Empty**
14    OPTION 1           Empty**
13    PRINTER            ENTREX INC SN598**
12    TAPE 556/800 BPI   2433 LFI 213**
11    TAPE 1600 BPI      Empty**
10    DISK               2456 00 MP-Kontroller
                         D44an6206393500215 2456 7 0 1577**
09    COMMO              Empty**
08    SCANNER            Scanner BD 2431 NCAG 54147.1.15 2431 02394**
07    MEM                1609 0 7 02616**
06    MEM                Empty**
05    MEM                1609 0 8 02367**
04    MEM                1615 01 9 5596**
03    TTY                Empty**
02    DO NOT USE         Empty**

01    C.P.               1509 05 4 04436*







Dominique has featured this machine and others at

More detail will be cataloged here soon!
